Refine Architecture Definition
Note: Responses from the AI Assistant were lightly edited for readability.
Add interface specifications for Services
We will now enhance the trading system architecture definition by adding interface definitions for the services.
Identify application endpoints
Using the AI Assistant identify all the nodes that are services.
Prompt to AI Assistant
what are the nodes that are services
Note: The trading-system.architecture.json file is added to the context for this prompt.
Response from AI Assistant
Looking at the CALM architecture file, here are the nodes with `node-type: "service"`:
1. **Trade Service** - Handles trade submission, validates tickets against security master and account service
2. **Account Service** - Manages account lifecycle, user associations, and account queries
3. **Position Service** - Provides position and trade data for blotter initialization
4. **People Service** - Manages user search and validation against the user directory
5. **Security Master** - Maintains tradeable securities list, loads from CSV, validates tickers
6. **Trade Processor** - Processes trade events, updates data store, publishes trade and position updates
7. **Trade Feed** - Publishes and delivers real-time trade events, position updates, and trade status notifications
These 7 services form the core processing layer of the trading system architecture,
sitting between the web GUI and the data storage/directory components.
We will now ask the AI Assistant to review the application source code to pull out the endpoint information for each of the services.
Prompt to AI Assistant
for each of the services listed, identify the service endpoints in the #codebase.
For each endpoint, extract the following:
-description
-path
-method
-port
If you are unable to find endpoint information for that service in the code,
respond "Unable to find endpoint information"
Note: It is a good practice to be explicit with how the AI Assistant should respond if information is not present. Otherwise the AI Assistant may hallucinate incorrect information.
Response from AI Assistant
Searched codebase for "for each of the services listed, identify the service endpoints in the #codebase. For each endpoint, extract the following:
-description
-path
-method
-port
If you are unable to find endpoint information for that service in the code, respond "Unable to find endpoint information", 26 results
I'll search the codebase for endpoint information for each service.
Searched codebase for "Trade Service API endpoints routes controller REST methods paths", 20 results
Searched codebase for "Account Service API endpoints routes controller REST methods paths", 16 results
Searched codebase for "Position Service API endpoints routes controller REST methods paths", 22 results
Searched codebase for "People Service API endpoints routes controller REST methods paths", 15 results
Searched codebase for "Security Master reference data API endpoints routes controller REST methods paths", 25 results
Searched codebase for "Trade Processor API endpoints routes controller REST methods paths", 23 results
Searched codebase for "Trade Feed API endpoints routes controller WebSocket paths", 24 results
Let me search for specific port configurations and README files for each service to get complete endpoint information.
Searched codebase for "service port 18088 18089 18090 18091 18092 18085 18086 configuration environment variable", 27 results
Searched codebase for "openapi.json swagger spec API documentation endpoint paths", 21 results
Based on my search of the codebase, here are the service endpoints I found:
## **1. Trade Service**
**Port:** 18092
| Description | Path | Method |
|-------------|------|--------|
| Submit a new trade order | `/trade/` | POST |
---
## **2. Account Service**
**Port:** 18088
| Description | Path | Method |
|-------------|------|--------|
| Get all accounts | `/account/` | GET |
| Get account by ID | `/account/{id}` | GET |
| Create account | `/account/` | POST |
| Update account | `/account/` | PUT |
| Get all account users | `/accountuser/` | GET |
| Get account user by ID | `/accountuser/{id}` | GET |
| Create account user | `/accountuser/` | POST |
| Update account user | `/accountuser/` | PUT |
---
## **3. Position Service**
**Port:** 18090
| Description | Path | Method |
|-------------|------|--------|
| Get all positions | `/positions/` | GET |
| Get positions by account ID | `/positions/{accountId}` | GET |
| Get all trades | `/trades/` | GET |
| Get trades by account ID | `/trades/{accountId}` | GET |
---
## **4. People Service**
**Port:** 18089
| Description | Path | Method |
|-------------|------|--------|
| Get a person by logonId or employeeId | `/People/GetPerson` | GET |
| Get matching people by search text | `/People/GetMatchingPeople` | GET |
| Validate a person | `/People/ValidatePerson` | GET |
---
## **5. Security Master (Reference Data Service)**
**Port:** 18085
| Description | Path | Method |
|-------------|------|--------|
| Get all stocks | `/stocks` | GET |
| Get stock by ticker | `/stocks/{ticker}` | GET |
---
## **6. Trade Processor**
**Port:** 18091
| Description | Path | Method |
|-------------|------|--------|
| Process trade order | `/tradeservice/order` | POST |
*Note: This service primarily operates via the trade feed message bus (WebSocket/SocketIO) and
this REST endpoint appears to be for testing/alternate invocation.*
---
## **7. Trade Feed**
**Port:** 18086
This service uses **WebSocket/SocketIO** for publish-subscribe messaging pattern rather than traditional REST endpoints. It provides:
- WebSocket connection for real-time trade and position updates
- Publish/Subscribe topics for trades and positions
- GET `/` - HTML viewer page for monitoring messages
REST API Endpoint specifications
Since there are two types of endpoints: REST and WebSocket, we will first create CALM interface specifications for the RESTful services.
Prompt to AI Assistant
Except for the "Trade Feed" service node propose endpoint CALM interface specifications for the node.
Show the recommendation. I want to review and approve the change.
Response from AI Assistant
Based on the endpoints I found in the codebase, here are my proposed CALM interface specifications for each service node (excluding Trade Feed):
## **1. Trade Service**
```json
{
"unique-id": "trade-service",
"node-type": "service",
"name": "Trade Service",
"description": "Handles trade submission, validates tickets against security master and account service",
"interfaces": [
{
"unique-id": "trade-service-api",
"name": "Trade Service REST API",
"description": "HTTP API for submitting and validating trade orders",
"protocol": "HTTPS",
"port": 18092,
"schema": {
"specification": "OpenAPI",
"operations": [
{
"path": "/trade/",
"method": "POST",
"description": "Submit a new trade order with validation against security master and account service"
}
]
}
}
]
}
```
## **2. Account Service**
```json
{
"unique-id": "account-service",
"node-type": "service",
"name": "Account Service",
"description": "Manages account lifecycle, user associations, and account queries",
"interfaces": [
{
"unique-id": "account-service-api",
"name": "Account Service REST API",
"description": "HTTP API for managing accounts and account-user associations",
"protocol": "HTTPS",
"port": 18088,
"schema": {
"specification": "OpenAPI",
"operations": [
{
"path": "/account/",
"method": "GET",
"description": "Get all accounts"
},
{
"path": "/account/{id}",
"method": "GET",
"description": "Get account by ID"
},
{
"path": "/account/",
"method": "POST",
"description": "Create new account"
},
{
"path": "/account/",
"method": "PUT",
"description": "Update existing account"
},
{
"path": "/accountuser/",
"method": "GET",
"description": "Get all account users"
},
{
"path": "/accountuser/{id}",
"method": "GET",
"description": "Get account user by ID"
},
{
"path": "/accountuser/",
"method": "POST",
"description": "Create account user association"
},
{
"path": "/accountuser/",
"method": "PUT",
"description": "Update account user association"
}
]
}
}
]
}
```
## **3. Position Service**
```json
{
"unique-id": "position-service",
"node-type": "service",
"name": "Position Service",
"description": "Provides position and trade data for blotter initialization",
"interfaces": [
{
"unique-id": "position-service-api",
"name": "Position Service REST API",
"description": "HTTP API for retrieving trades and positions by account",
"protocol": "HTTPS",
"port": 18090,
"schema": {
"specification": "OpenAPI",
"operations": [
{
"path": "/positions/",
"method": "GET",
"description": "Get all positions"
},
{
"path": "/positions/{accountId}",
"method": "GET",
"description": "Get positions for specific account"
},
{
"path": "/trades/",
"method": "GET",
"description": "Get all trades"
},
{
"path": "/trades/{accountId}",
"method": "GET",
"description": "Get trades for specific account"
}
]
}
}
]
}
```
## **4. People Service**
```json
{
"unique-id": "people-service",
"node-type": "service",
"name": "People Service",
"description": "Manages user search and validation against the user directory",
"interfaces": [
{
"unique-id": "people-service-api",
"name": "People Service REST API",
"description": "HTTP API for user search and validation against directory",
"protocol": "HTTPS",
"port": 18089,
"schema": {
"specification": "OpenAPI",
"operations": [
{
"path": "/People/GetPerson",
"method": "GET",
"description": "Get person by logonId or employeeId"
},
{
"path": "/People/GetMatchingPeople",
"method": "GET",
"description": "Search people by logonId or fullName"
},
{
"path": "/People/ValidatePerson",
"method": "GET",
"description": "Validate person exists in directory"
}
]
}
}
]
}
```
## **5. Security Master (Reference Data)**
```json
{
"unique-id": "security-master",
"node-type": "service",
"name": "Security Master",
"description": "Maintains tradeable securities list, loads from CSV, validates tickers",
"interfaces": [
{
"unique-id": "security-master-api",
"name": "Security Master REST API",
"description": "HTTP API for retrieving tradeable securities and ticker validation",
"protocol": "HTTPS",
"port": 18085,
"schema": {
"specification": "OpenAPI",
"operations": [
{
"path": "/stocks",
"method": "GET",
"description": "Get all tradeable securities"
},
{
"path": "/stocks/{ticker}",
"method": "GET",
"description": "Get security by ticker symbol"
}
]
}
}
]
}
```
## **6. Trade Processor**
```json
{
"unique-id": "trade-processor",
"node-type": "service",
"name": "Trade Processor",
"description": "Processes trade events, updates data store, publishes trade and position updates",
"interfaces": [
{
"unique-id": "trade-processor-api",
"name": "Trade Processor REST API",
"description": "HTTP API for direct trade processing (primarily operates via trade feed)",
"protocol": "HTTPS",
"port": 18091,
"schema": {
"specification": "OpenAPI",
"operations": [
{
"path": "/tradeservice/order",
"method": "POST",
"description": "Process trade order directly"
}
]
}
}
]
}
```
---
**Summary**: These interface specifications add the `interfaces` property to each service node,
documenting their REST APIs with port numbers, protocols, and detailed operation paths. All port
numbers and endpoints are based on actual code in the repository.
**Please review and approve if you'd like me to add these interfaces to the architecture file.**
The architect spot checks the proposed interface specifications against the application source code and the proposal looks good.
Prompt to AI Assistant
I approve the interfaces, please add to the architecture file
Response from AI Assistant

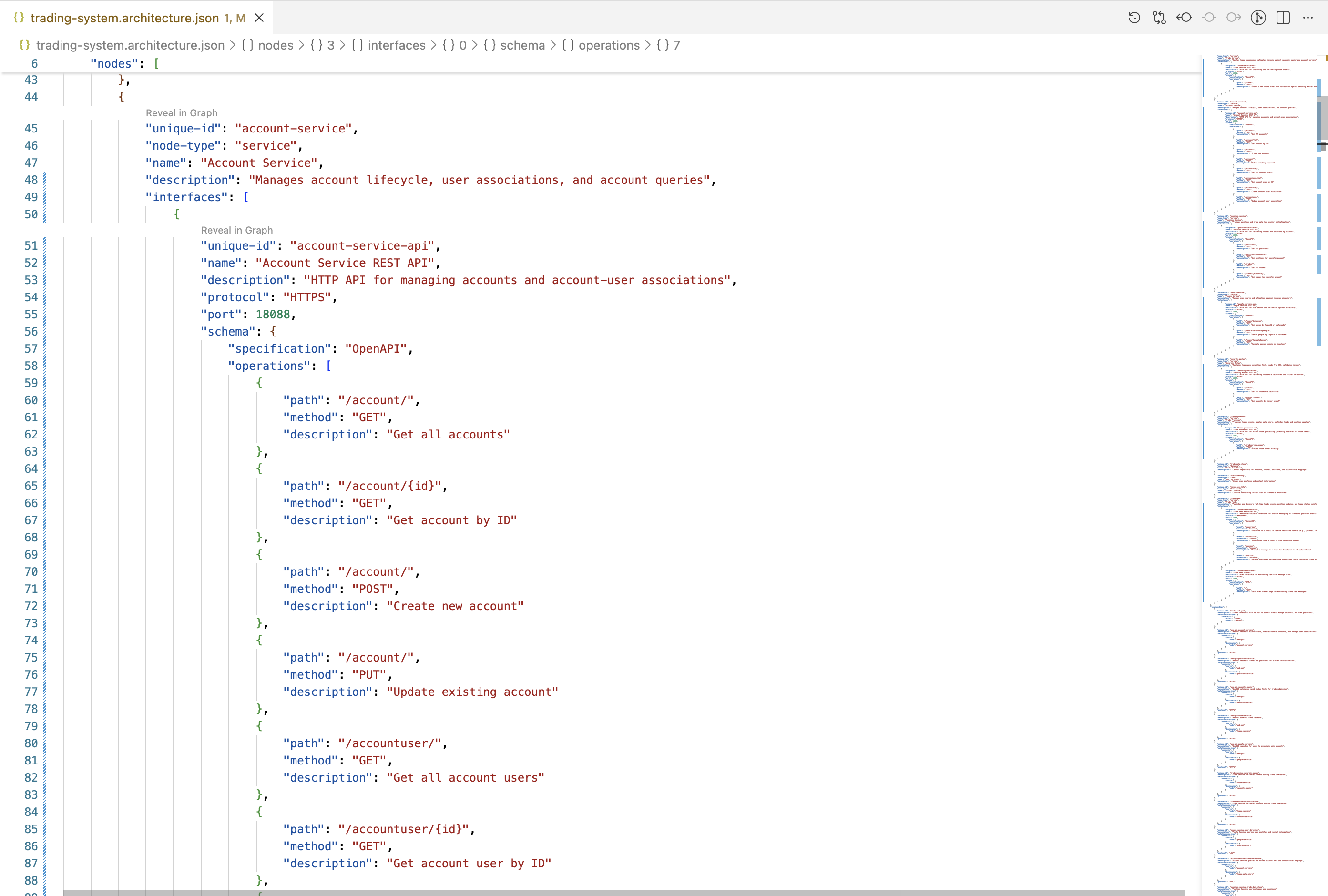

Replacing 36 lines with 215 lines in [](file:trading-system.architecture.json)
Done! I've successfully added the interface specifications to all six service nodes in the architecture file:
✅ **Trade Service** - 1 POST endpoint on port 18092
✅ **Account Service** - 8 endpoints (GET/POST/PUT) on port 18088
✅ **Position Service** - 4 GET endpoints on port 18090
✅ **People Service** - 3 GET endpoints on port 18089
✅ **Security Master** - 2 GET endpoints on port 18085
✅ **Trade Processor** - 1 POST endpoint on port 18091
The Trade Feed service was left unchanged as requested. Each interface specification includes the protocol (HTTPS), port number, and detailed operation information with paths, methods, and descriptions based on the actual endpoints found in the codebase.
Made changes.
Since an update was made to the architecture file, we need to validate that the updates conform to the CALM schema. If there any issues, it is better to catch problems early.
Prompt to AI Assistant
validate the architecture file
Response from AI Assistant
Ran terminal command: calm validate -a trading-system.architecture.json -f pretty
✅ **Validation successful!**
The architecture file passes validation with:
- **0 errors**
- **0 warnings**
- **0 info/hints**
The CALM architecture file is valid and conforms to the CALM 1.2 schema.
The RESTful interface specifications pass validation, we can now commit the changes to the repo with message "add interface specification for REST services"
Trade Feed Service interface specification
Let's now focus on the Trade Feed WebSocket/SocketIO interface.
Prompt to AI Assistant
For the "Trade Feed" service, propose a CALM interface specification. Display the proposal.
I want to review and approve any changes.
Response from AI Assistant
Based on the Trade Feed service code, here's my proposed CALM interface specification:
## **Trade Feed Service Interface Proposal**
```json
{
"unique-id": "trade-feed",
"node-type": "service",
"name": "Trade Feed",
"description": "Publishes and delivers real-time trade events, position updates, and trade status notifications",
"interfaces": [
{
"unique-id": "trade-feed-websocket",
"name": "Trade Feed WebSocket API",
"description": "WebSocket/SocketIO interface for pub-sub messaging of trade and position events",
"protocol": "WebSocket",
"port": 18086,
"schema": {
"specification": "SocketIO",
"operations": [
{
"event": "subscribe",
"direction": "inbound",
"description": "Subscribe to a topic to receive real-time updates (e.g., /trades, /accounts/{id}/trades, /accounts/{id}/positions)"
},
{
"event": "unsubscribe",
"direction": "inbound",
"description": "Unsubscribe from a topic to stop receiving updates"
},
{
"event": "publish",
"direction": "inbound",
"description": "Publish a message to a topic for broadcast to all subscribers"
},
{
"event": "publish",
"direction": "outbound",
"description": "Receive published messages from subscribed topics including trade events and position updates"
}
]
}
},
{
"unique-id": "trade-feed-viewer",
"name": "Trade Feed Viewer",
"description": "HTML interface for monitoring real-time message flow",
"protocol": "HTTPS",
"port": 18086,
"schema": {
"specification": "HTML",
"operations": [
{
"path": "/",
"method": "GET",
"description": "Serve HTML viewer page for monitoring trade feed messages"
}
]
}
}
]
}
```
---
## **Key Points:**
1. **Two interfaces** are defined:
- **WebSocket interface** for the pub-sub messaging system (primary functionality)
- **HTTP interface** for the viewer HTML page
2. **WebSocket operations** include both inbound (client actions) and outbound (server messages) events
3. **Common topic patterns** mentioned in description:
- `/trades` - new trade events
- `/accounts/{id}/trades` - account-specific trade updates
- `/accounts/{id}/positions` - account-specific position updates
4. **Protocol** is WebSocket (using SocketIO library)
5. **Port** is 18086 for both interfaces
---
**Please review and let me know if you approve this interface specification for the Trade Feed service,
or if you'd like any modifications.**
Prompt to AI Assistant
I approve change, add to architecture file and validate the updated architecture file
Response from AI Assistant
Replacing 6 lines with 57 lines in [](file:trading-system.architecture.json)
Ran terminal command: calm validate -a trading-system.architecture.json -f pretty
✅ **Changes applied and validated successfully!**
**Added to Trade Feed service:**
- **WebSocket interface** (port 18086) with 4 SocketIO operations:
- Subscribe to topics (inbound)
- Unsubscribe from topics (inbound)
- Publish messages (inbound)
- Receive published messages (outbound)
- **Viewer interface** (port 18086) with HTTP GET endpoint for monitoring page
**Validation results:**
- **0 errors**
- **0 warnings**
- **0 info/hints**
The architecture file now has complete interface specifications for all 7 services and passes CALM 1.2 schema validation.
Made changes.
Now issue a GIT commit with message "add Trade Feed websocket interface specification"
Let's look at how the architecture JSON file was updated with the interface definitions.
REST Example
WebSocket Example
Add Control Specification
Prompt to AI Assistant
Add architecture level controls for:
Encryption in Transit
- All data transmitted between system components must be encrypted.
- Use TLS with a minimum version of 1.3.
- Use modern cipher suites suitable for strong encryption.
- Certificates must be validated.
- Mutual TLS is recommended for internal service-to-service communication.
Encryption at Rest
- All stored data must be encrypted at rest.
- Use strong encryption equivalent to AES-256.
- Encryption keys must be managed using a hardware-backed or managed key system.
- Keys should be rotated regularly (for example, every 90 days).
- This applies to:
- Databases
- File systems
- Object storage
- Backups
Response from AI Assistant
I'll add architecture-level controls for encryption in transit and encryption at rest to your trading system architecture.
Replacing 6 lines with 46 lines in [](file:trading-system.architecture.json)
Ran terminal command: calm validate -a trading-system.architecture.json
Architecture-level controls have been successfully added to trading-system.architecture.json. The controls include:
**Encryption in Transit**
- TLS 1.3 minimum version
- Modern cipher suites (TLS_AES_256_GCM_SHA384, TLS_CHACHA20_POLY1305_SHA256, TLS_AES_128_GCM_SHA256)
- Required certificate validation
- Recommended mutual TLS for service-to-service communication
**Encryption at Rest**
- AES-256 encryption algorithm
- Hardware-backed key management
- 90-day key rotation period
- Applies to databases, file systems, object storage, and backups
The architecture validates successfully with no errors or warnings. To regenerate the HTML documentation with these controls, run:
Made changes.

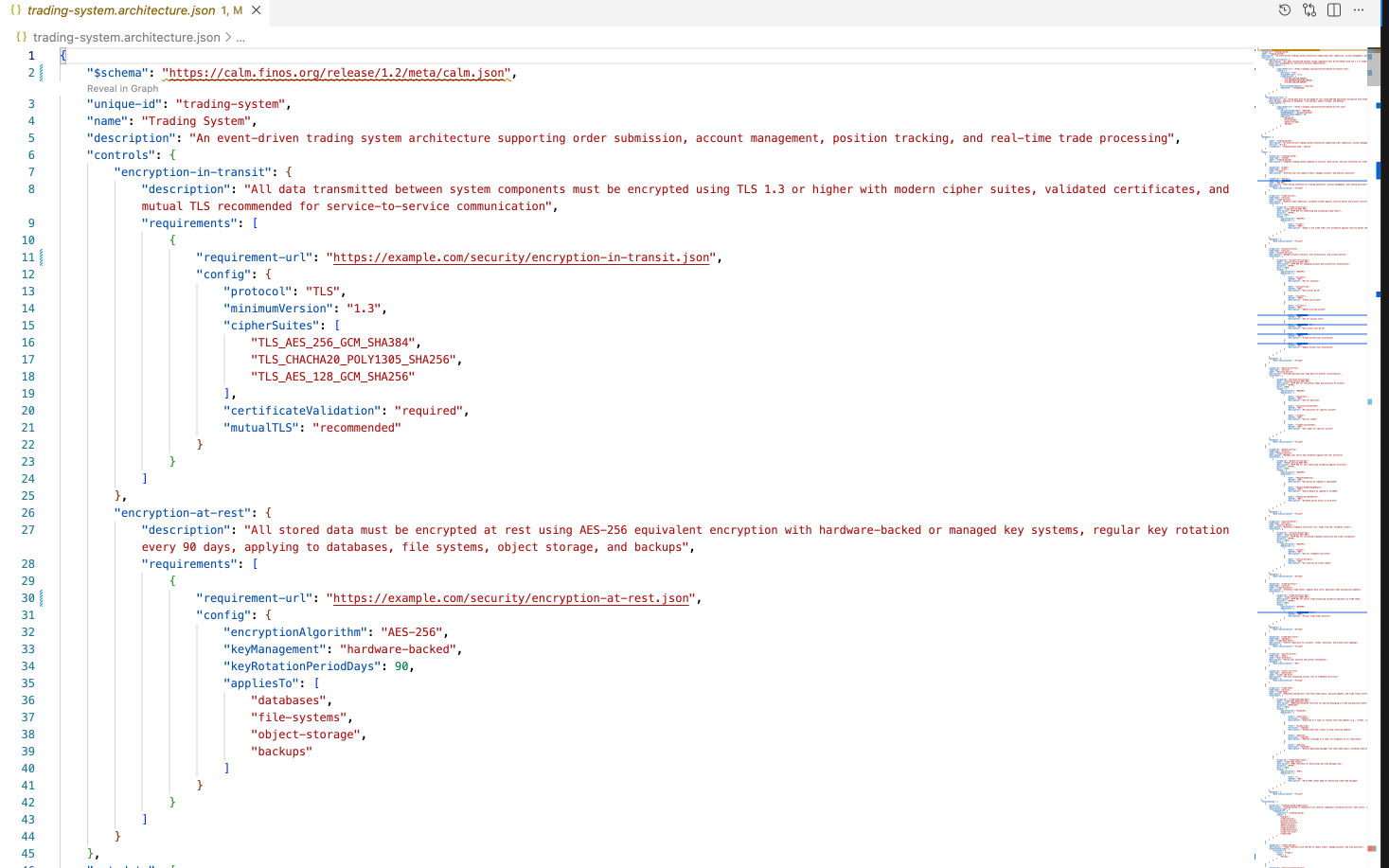

The architecture JSON with control specifications.
Note: The values shown in the requirements list are illustrative only. In actual work, the architect should use their organization's approved information. This information can be provided as part of the prompt or can be manually updated in the JSON file.
Commit architecture file with controls definition to GIT repo
Since the CALM validation passes and a review of the architecture JSON file shows the controls definitions were added, we'll commit the updated architecture file to the GIT repo with message "add architecture controls definition".
Add architecture and node level metadata
For the architecture level, let's add metadata about the version and team responsible for the architecture.
Prompt to AI Assistant
add following metadata at the architecture level:
* "name": "Trading System"
* "description": "An event-driven trading system architecture supporting order submission, account management, position tracking, and real-time trade processing."
* "version" : "0.1.0"
* "created-by" : "Trading System Team - Copilot"
Response from AI Assistant
Replacing 6 lines with 12 lines in [](file:trading-system.architecture.json)
Ran terminal command: calm validate -a trading-system.architecture.json
Architecture-level metadata added successfully. The architecture validates with no errors or warnings.
Made changes.

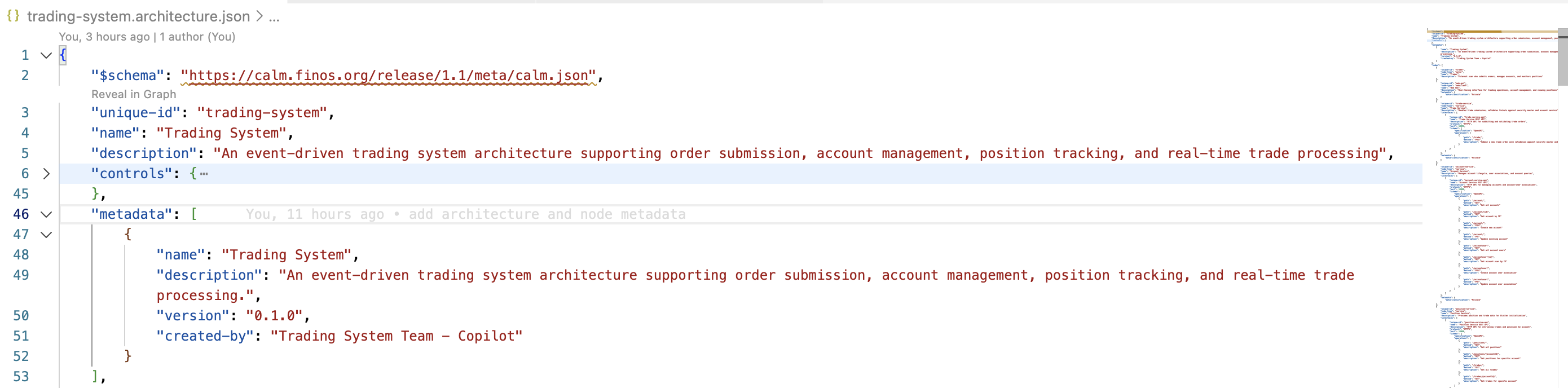

Screenshot of the metadata added to the architecture json file.
For the nodes, we will add a data classification metadata.
Prompt to AI Assistant
For all nodes except `Trader` and `User Directory` add metadata "data-classification" : "Private"
For `User Directory` node add metadata "data-classification" : "PII"
Show me the proposed changes. I want to review and approve any changes.
Response from AI Assistant
I'll show you the proposed metadata additions for each node:
## Proposed Changes
### Nodes with NO changes:
- **trader** - No metadata added (as requested)
### Nodes receiving `"data-classification": "Private"`:
1. **web-gui** (Web GUI)
2. **trade-service** (Trade Service)
3. **account-service** (Account Service)
4. **position-service** (Position Service)
5. **people-service** (People Service)
6. **security-master** (Security Master)
7. **trade-processor** (Trade Processor)
8. **trade-data-store** (Trade Data Store)
9. **ticker-csv-file** (Ticker CSV File)
10. **trade-feed** (Trade Feed)
### Nodes receiving `"data-classification": "PII"`:
- **user-directory** (User Directory)
## Example of how it will look:
**Before (web-gui):**
```json
{
"unique-id": "web-gui",
"node-type": "webclient",
"name": "Web GUI",
"description": "User-facing interface for trading operations, account management, and viewing positions"
}
```
**After (web-gui):**
```json
{
"unique-id": "web-gui",
"node-type": "webclient",
"name": "Web GUI",
"description": "User-facing interface for trading operations, account management, and viewing positions",
"metadata": {
"data-classification": "Private"
}
}
```
**After (user-directory):**
```json
{
"unique-id": "user-directory",
"node-type": "ldap",
"name": "User Directory",
"description": "Stores user profiles and contact information",
"metadata": {
"data-classification": "PII"
}
}
```
Would you like me to proceed with these changes?
Prompt to AI Assistant
yes
Response from AI Assistant
Replacing 66 lines with 99 lines in [](file:trading-system.architecture.json)
Ran terminal command: calm validate -a trading-system.architecture.json
Successfully added data classification metadata to all nodes:
- 10 nodes with `"data-classification": "Private"`
- 1 node (user-directory) with `"data-classification": "PII"`
- trader node unchanged (as requested)
The architecture validates successfully with no errors or warnings.
Made changes.
Commit metadata changes to the GIT Repo
Now that the architecture file validates with the metadata changes, commit the changes to the GIT repo with message "add architecture and node metadata".
Document Trading System Boundary
Finally we now want to delineate the boundary of Trading System.
Prompt to AI Assistant
add a node called "Trading System" of type "system" and create a "composed-of" relationship
that adds all nodes except for "Trader" and "User Directory" to the "Trading System" node.
Response from AI Assistant
I'll add the "Trading System" node and create the composed-of relationship.
Replacing 18 lines with 45 lines in [](file: trading-system.architecture.json)
Ran terminal command: calm validate -a trading-system.architecture.json -f pretty
Done! I've added:
1. **New node**: "Trading System" (type: `system`) as the first node in the architecture
2. **Composed-of relationship**: Links the Trading System container to 10 internal components:
- web-gui
- trade-service
- account-service
- position-service
- people-service
- security-master
- trade-processor
- trade-data-store
- ticker-csv-file
- trade-feed
The architecture validates successfully with no errors or warnings. The "trader" actor
and "user-directory" LDAP remain external to the Trading System as requested.
Made changes.

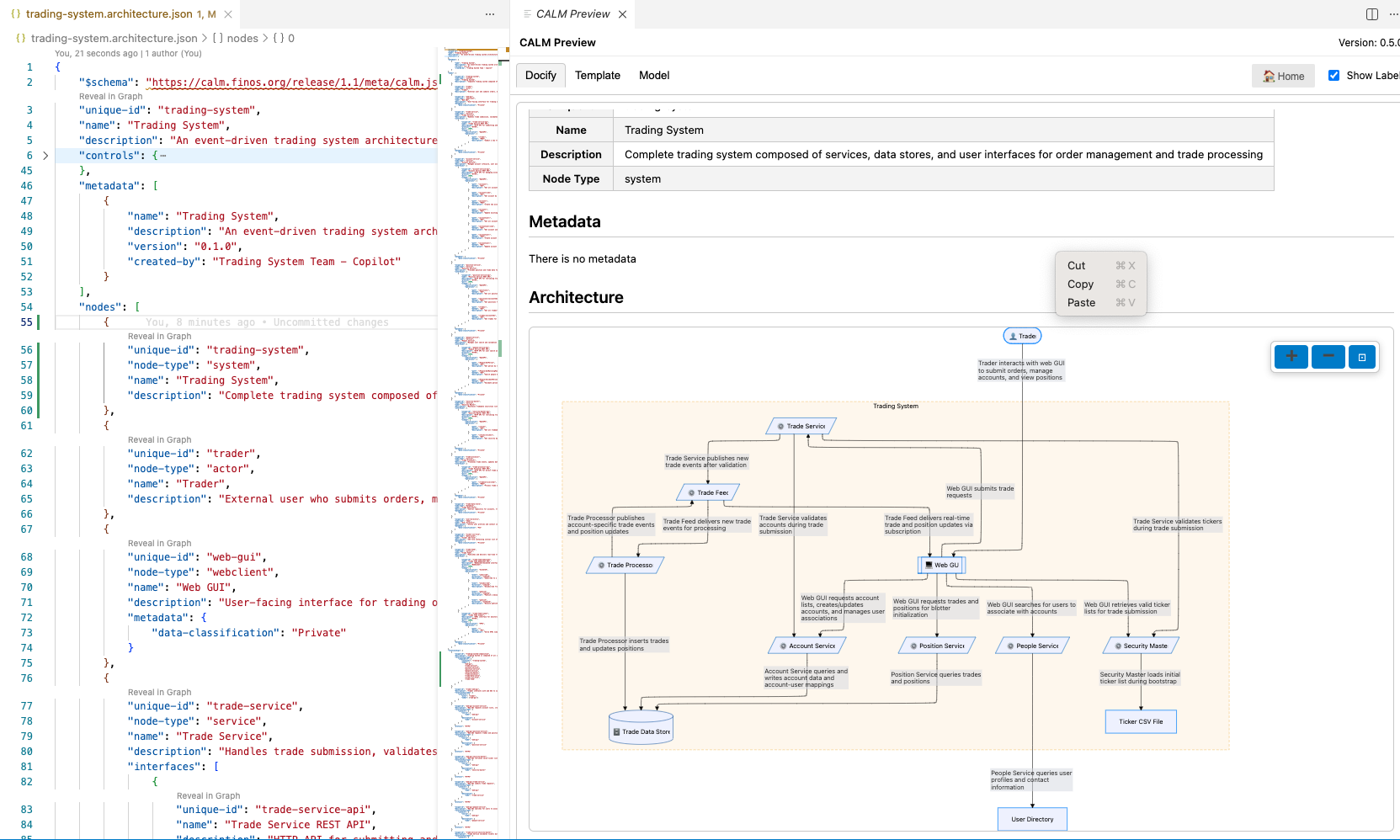

Architecture with system boundary depicted.
Commit the changes to the GIT repo with the message "add trading system boundary".
Summary
In this portion of the tutorial we have enhanced the architecture definition with technical information, i.e., endpoint specifications, Controls, and metadata.
Here is the completed CALM Architecture
In the next section we look at two methods for communicating the content of the architecture.
